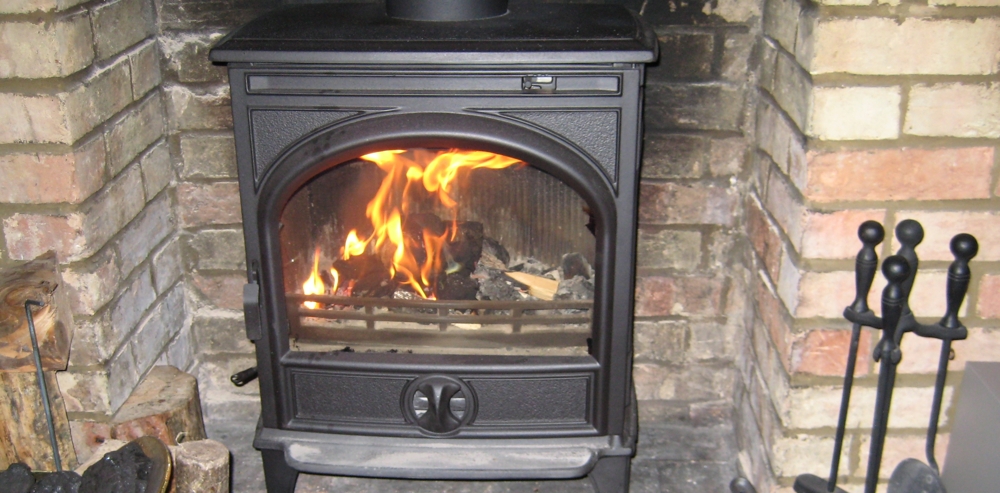

Stove fans are a fantastic innovation that really do dramatically improve the warmth given out from your stove. We have seen a massive interest in this product in the past year, as wood burners become the ‘in’ product for the home. And why not? They are aesthetically pleasing, easy to operate, low effort to maintain and inexpensive to run too.
Having said that, it can take a while for the stove to warm up a room, especially a big room. Using a stove fan will heat the room up in a fraction of the time, and are a really easy way to maximise the warmth you get from your stove.
Below, James shows how a stove fan works.
Does the stove fan have batteries?
No. The stove fan is effectively an engine that uses heat as an energy source to make it run. The heat differential between the base of the unit and the top of the fan drives the motor, which in turn drives the blades around, while the cooling fans at the rear help keep the top of the fan at a much lower temperature, making sure the fan spins maintains constant revolutions.
The little motor in the fan is a thermoelectric motor – a really simple device whereby two semi-conductors at different temperatures can create a voltage between them. This electricity isn’t huge, but it is just enough to drive the blades of the fan around.
Does it work on all stoves?
The stove fan will only work on stoves that achieve a certain minimum temperature. This is because the base of the unit needs to get up to temperature before the temperature differential between the top of the device and the bottom is high enough to make the blades turn. Some stoves will require special ‘low temperature’ fans, which are specifically designed to run on stoves that don’t get up to very high temperatures. Generally speaking though, most stoves can benefit from a fan.[amazon_link asins=’B01LYNSPPA’ template=’ProductAd’ store=’the0c3-21′ marketplace=’UK’ link_id=’b796d357-e7fc-11e8-a568-c9f495c50bff’]
What is the best position for the fan?
The key thing to note when placing your fan is that it needs space behind it. This is because the fan draws cooler air from behind the fan to help power it. If you block the rear of the fan, by setting it up against the wall or the flue, you are going to get an inefficient system. Also try and put it towards the rear of the stove (allowing about 15cm of space behind the fan), so that the fan pushes the warm air out into the room.
Can the stove fan get too hot?
Yes. If the fan gets too hot it can overheat and damage the motor. To prevent this you can get yourself a stove thermometer to check on the temperature and know when it is getting too hot for your fan. If it gets too hot, you can try moving it to a cooler part of the stove or removing it completely. Different fan models have different maximum temperatures, so make sure you check your model’s specifications.
Think we missed something? Do you have a different opinion?
Comment below to get your voice heard…
[…] The Green Age: Offers a detailed explanation of how stove fans work and their benefits. […]
Can I get a horizontal fan for my wood burning stove
What about the fans that say powered by heat,no electricity or batteries needed, but down in description it will say battery powered. Are these able to be used with batteries during the summer months?
Could you make a larger version to generate electricity to charge power banks etc?
Someone told me that if my fan is rattling it is a warning that the stove is getting too hot. Is that true?
will it work on top of a pellet stove
Mine is absolutely amazing! Had a great customer service experience and I 100% recommend them.
I have a eco fan and the blade goes anti-clockwise why is this
[…] How Does a Wood Stove Fan Work? […]
[…] Stove fans are a really cheap and easy way to make the most of the heat from your stove. Stoves can be a great way to make the temperature of your home more comfortable and having spent money on fuel, you might as well make sure it goes as far as possible. Stove fans help circulate air around the room which would otherwise just rise to the ceiling. They are powered by heat, so there are no running costs. You pay a small amount for the fan in the first place and then it can help you save money for years to come! […]
I’m amazed, I have to admit. Rarely do I encounter
a blog that’s equally educative and engaging, and without a doubt, you’ve
hit the nail on the head. The issue is something which too few folks are speaking intelligently about.
I’m very happy I found this during my search for something concerning this.
[…] louder it can be. Ensure the vents lead to the exterior. When setting up a stove hood, never ever exhaust atmosphere or close down, close, shut down ductwork directly into spaces involving walls, get attics, basement […]
[…] the vents lead to the outdoors. When setting up a stove hood, by no means exhaust air flow or close down, close, shut down ductwork straight into spaces involving walls, spider attics, basement spaces, or […]
[…] atmosphere or close down, close, shut down ductwork directly into spaces among walls, get attics, basement spaces, or maybe […]
[…] we are ready to give you more tips regarding those gadgets, we need to clear up how exactly these wood stove fans work. Once we know the basics of their mechanics, we will be able to determine which qualities are worth […]
I have a log burner with no glass door, is it safe to hang my fan in front of fire
No! The heating plate on the fan is at the bottom. It will only work standing on a hot surface.
How do I reverse the direction the fan turns. According to the video the fan turns clockwise which is how we think it should turn. Our fan turns counter clockwise and therefore it doesn’t push the air toward the front of the fireplace
The thermoelectric battery needs turning over
My Aldi fan did the same. I de-soldered the connections to the motor and flipped them round.
In the video of James and the stove fan, he’s positioned it on the stove in what I believe is precisely the WRONG ;place. Everywhere I look for advice says to never put it directly in front of the pipe. But that seems to be exactly where James places it. Oh dear. Silly James..
What is the suspected lifetime of the fan? Precisely the power generating plate?
I’ve had several of these. The motor is what usually gives up first. Most have only lasted one winter but I’ve replaced the motor and they are as good as new.
The thermoelectric plate (not thermoelectric motor as stated above) produces about 3 volts although different models vary slightly.
My stove top is not horizontal, but sloping. Will it be possible for a stove top fan to work even if the base is not horizontal?
Thank you
david Hemingway
Hi David
It really depends on the degree of the slope! There’s no reason why it being at a slight angle would stop it working – as long as you can find a way to attach it so that it doesn’t slip off.
We use magnets to secure the base of the fan to the stove as the angle is quite acute. . It works perfectly.
Magnets are a good idea but most magnets are ruined by heat especially rare earth magnets
Please let me know the dimensions of the Valiant Fan. My stove is inset with just a 4 inch shelf protruding.
Myra Mooney
Living in a farmhouse in Spain my only source of heat is my log burner, therefore your fan sounds great for heating throughout. The only problem is that I only have 18cm from the flue to the edge of the log burner above the door
therefore I do not have the required15cm of space in front of the flue for the fan.
Have you any suggestions how I can solve this problem..
The fan should be to one side, not in front of the flue pipe!
Yes you can now buy them on amazon or Ebay that are extremely low to get over the problem when high is an issue hope that helps Good luck
We have a 12 kilowatt log burner so what kind of fan would I need to go for?
Don’t know how old these questions are…
You need one which will take a very high temperature. Read the specs for each one and they will mention max temp.
